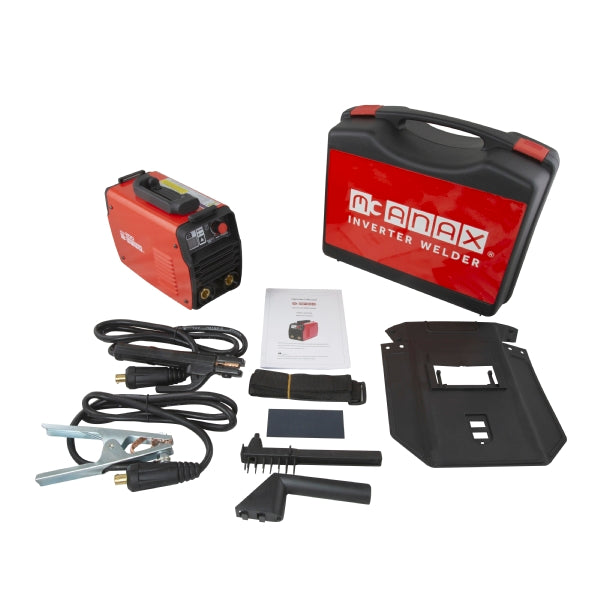

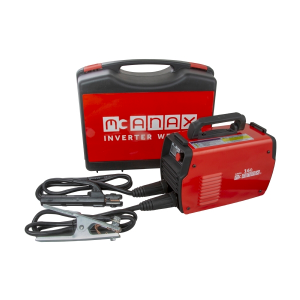

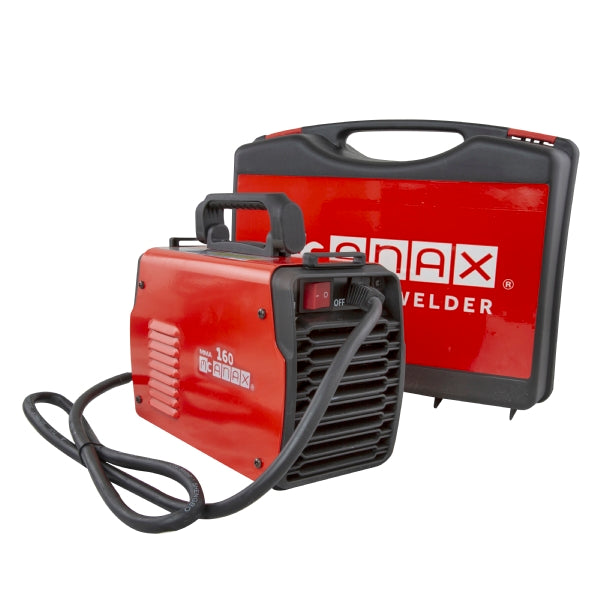

MCANAX WELDER INVERT 160amp MMA & LIFT TIG [008MX4100007]
Tax included.
Lower cost operation, more portable, more compact, superior output
Excellent arc properties and solution droplet transfer
With the protections of over-heating, over-voltage, over-current
Digital display function when use (only for plastic shell)
Plastic handle makes it easy to carry
Convenient quick connection for the output makes it quick, safe, simple and stable
Welding Machine Standards: GB 4208-93
Protection Class (IP Code): EN 60974-1
Arc Welding Machine Standards: EN 60974-1, JB / T 7824-95
Rohs compliant
Efficiency: >85%
Protection class: IP21
Insulation grade: H
Excellent arc properties and solution droplet transfer
With the protections of over-heating, over-voltage, over-current
Digital display function when use (only for plastic shell)
Plastic handle makes it easy to carry
Convenient quick connection for the output makes it quick, safe, simple and stable
Welding Machine Standards: GB 4208-93
Protection Class (IP Code): EN 60974-1
Arc Welding Machine Standards: EN 60974-1, JB / T 7824-95
Rohs compliant
Efficiency: >85%
Protection class: IP21
Insulation grade: H
Voltage | Rated input: 220/230 +/- 15%. No load voltage: 80-85V |
Current | Rated input: 33A |
Frequency | 50/60 Hz |
Capacity | Rated input: 7.5 kW |
Range | Output current: 30-160A |
Rating | Rated duty cycle: 40% - 25 Deg C, 30% - 40 Deg C 160A |
Weight | 3.5kg |
Dimensions | 265 x 117 x 178mm |
Size | Electrode: 1.6 - 4mm |
